HPR rocket building links

Posted on by
Reply

I’ve been trying to learn more about building techniques for high power rockets (HPR).  I’m already certified at Level 2, but I’ve still got a a lot to learn.

Here are a few web sites I’ve found to be particularly useful lately – maybe others will too:

Rocket Team Vatsaas: http://www.vatsaas.org/rtv/

A beautiful site with lots of construction tutorial info.  I’m still working my way thru it.  I haven’t met these guys, but I hope to one day.

Vern K’s site: http://vernk.com/

I met Vern at Black Rock in 2007 – his rockets are both beautiful and perform incredibly well.  And, I stole the idea of making Google Earth plots from GPS/altimeter data from him (altho I think my plots are prettier).  His site is a treasure trove of construction info and experience.

Robert DeHate’s site: http://www.geocities.com/rdh82000/

The site is kind of ugly, but there is lots of useful info in the “construction details” section of his projects.  Robert’s huge rockets are the highlight of many launches.  He’s meticulous about building reliable rockets – I need to be more like that.  Robert also sells the world’s smallest altimeters; I have an AD4 model and it works great.

More in-flight photos, 2008-07-27, NYPOWER 13 – Geneseo NY

Posted on by
Reply

Here’s another set of in-flight photos from the SuperHorizion rocket, with the same e-sled used in Amesbury MA the previous week.

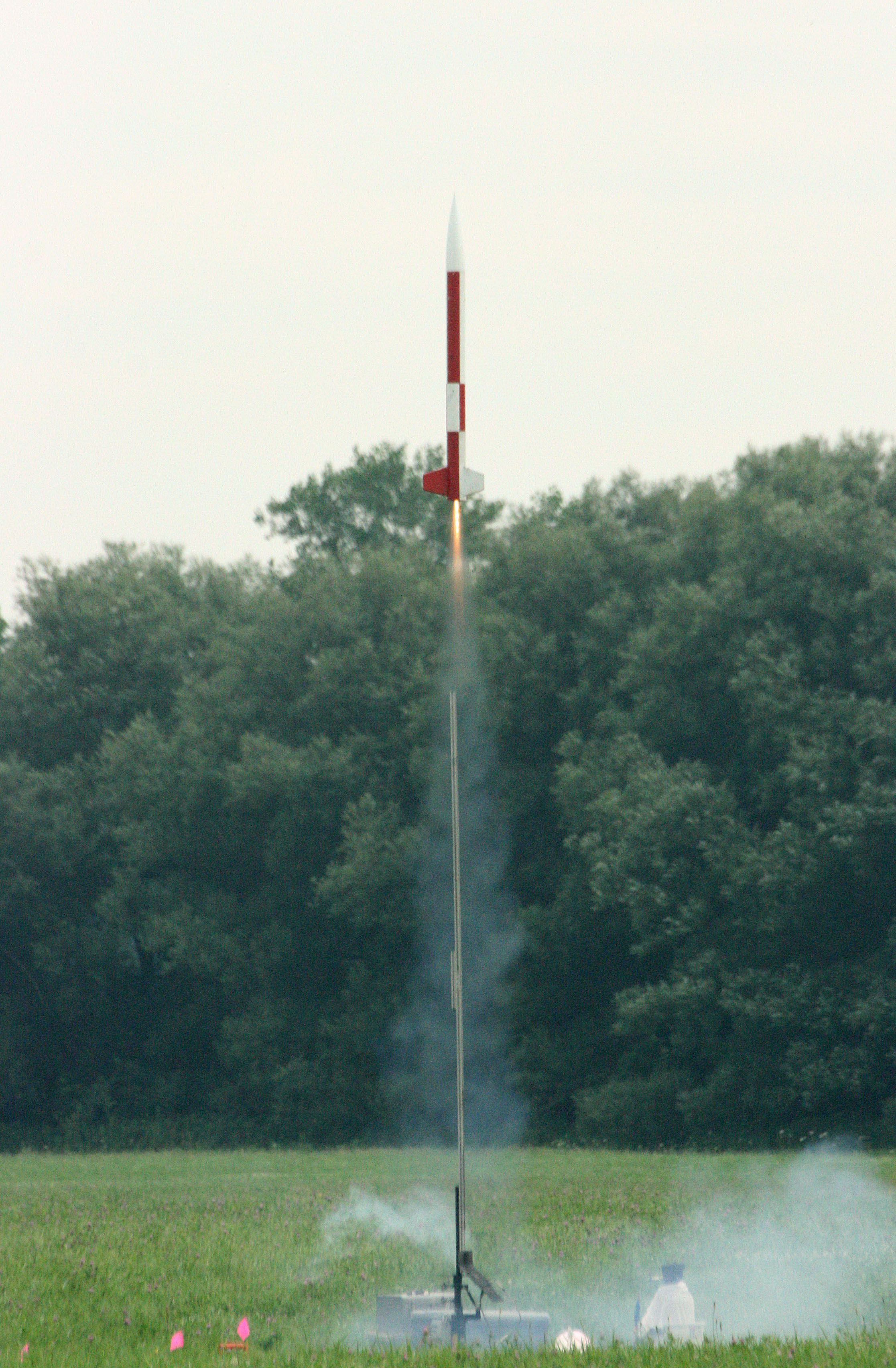

Here’s the launch – this time on a Skyripper H124PVC hybrid motor.

Flight data (from log in PIC):

Ejection altitude 780 feet AGL.
Ejection at 7.2 seconds.
Average ascent speed 74.2 mph.
Average descent speed 15.3 mph.
Descent time (estimated) 34.8 seconds.
Total flight time (est) 42.0 seconds.

Here’s the altimeter altitude graph – you can see the pressure spikes from ejection and landing.

In-flight photos, 2008-07-19, Amesbury MA

Posted on by
Reply

I finally had some success taking in-flight photos from my SuperHorizon rocket on July 19. Here’s the rocket in flight:

SuperHorizon, on Aerotech H210T

Below are the images it collected in flight.

Click on any image for full-size version, including EXIF data. Warning: files are big.

Last pre-flight image

Last pre-flight image

First image - ascending. Blurring is from motion.

First image - ascending. Blurring is from motion.

Looking straight down over the infamous powerlines. Somewhere close to apogee.

More power lines.

More power lines.

Farm equipment. This was one of several severely underexposed images that had to be "saved" in Photoshop. I'm not sure why this happens - maybe when the camera swings toward the sun it gets confused?

Farm equipment. This was one of several severely underexposed images that had to be "saved" in Photoshop. I'm not sure why this happens - maybe when the camera swings toward the sun it gets confused?

Best image of the flight - rotated and cropped a little, that's all. I can see my car in the parking lot, and kids on the soccer field. (Click to see full-rez image.)

Best image of the flight - rotated and cropped a little, that's all. I can see my car in the parking lot, and kids on the soccer field. (Click to see full-rez image.)

Nice sharp image of the houses on the hill.

Nice sharp image of the houses on the hill.

Coming down. Landing site is next to the truck.

Last flight image.

Last flight image.

Below you can see the electronics sled with the Pentax Optio S6 camera that took the images. The shutter is triggered via IR from the PIC – the thing taped onto the camera is an IR LED. (I buy digicams on eBay with “broken screens” – they’re cheap but they still take pictures.)

Front view of camera. E-sled is actually upside down - camera goes toward nose cone.

Front view of camera. E-sled is actually upside down - camera goes toward nose cone.

Side view - shows mounting arragment for camera (note 1/4"-20 screw into tripod mount). The PIC (18LF2620) and GPS are on the other side of the sled.

Side view - shows mounting arragment for camera (note 1/4"-20 screw into tripod mount). The PIC (18LF2620) and GPS are on the other side of the sled.

Finally, here’s a .KML file of the flight for Google Earth: sh_july19

Download that and double-click it, and you’ll see a 3D plot of the flight – something like this:

Google Earth snapshot

Google Earth snapshot
